approvals-ui

The approval workflow screen, as shadcn-style components for . Quorum gates, amount thresholds, a policy lint that knows what segregation of duties means, and plain-language editing where a human reviews the diff before anything lands.

▶︎

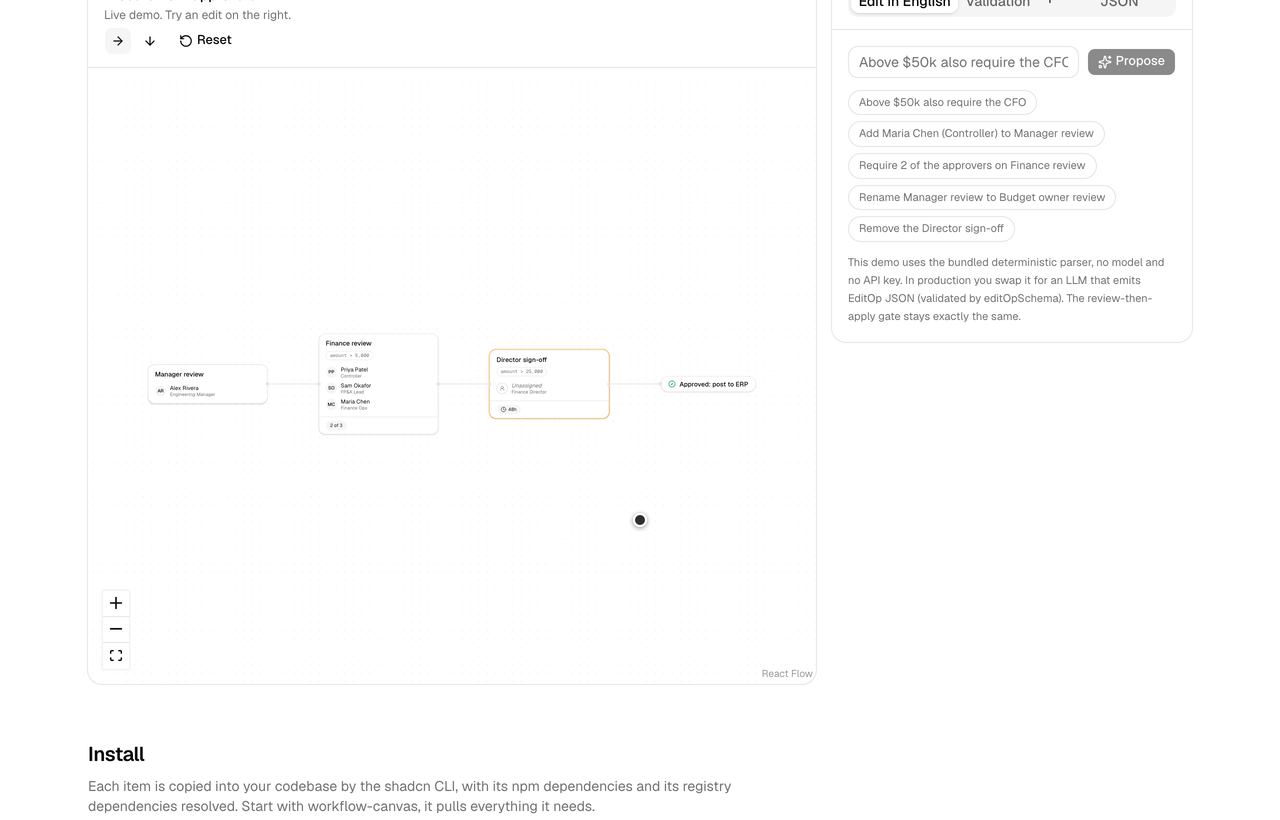

Typing "Above $50k also require the CFO": a CFO gate appears on the canvas ringed green, the proposal reads 1 added 1 changed, and Apply lands it
bash
npx shadcn@latest add https://approvals-ui.vercel.app/r/workflow-canvas.json

One command. The code lands in your project, with its dependencies resolved. It is yours to edit.

Prefer a namespace? Add the registry once to your components.json:

json
{  "registries": {    "@approvals-ui": "https://approvals-ui.vercel.app/r/{name}.json"  }}
bash
npx shadcn@latest add @approvals-ui/workflow-canvas

Add it with your AI agent

Paste this into Claude Code, Cursor, or any coding agent (also one click away in the ):

text
Add the approvals-ui approval-workflow screen to this project.
1. It is a shadcn registry, not an npm package. If the project has no components.json yet,   run: npx shadcn@latest init   Then: npx shadcn@latest add https://approvals-ui.vercel.app/r/workflow-canvas.json   Also add https://approvals-ui.vercel.app/r/nl-edit-panel.json and   https://approvals-ui.vercel.app/r/validation-panel.json if we want the editing and lint   panels.
2. Components land in components/approvals-ui/, the headless core in lib/approvals-ui/.   Render the canvas inside a container with a real height:
   import { WorkflowCanvas } from "@/components/approvals-ui/workflow-canvas"   import { examplePolicy } from "@/lib/approvals-ui/example-policy"
   <div className="h-[600px]">     <WorkflowCanvas policy={examplePolicy} />   </div>
3. Replace examplePolicy with our own ApprovalPolicy (schema: lib/approvals-ui/policy.ts).   Steps are approval gates or terminals; each has a "when" guard, approvers, and "next"   edges. Validate with validatePolicy() from lib/approvals-ui/validate.ts and surface the   issues (ValidationPanel renders them; isActivatable() should gate activation).
4. direction="TB" for top to bottom; the default lays out left to right.
5. For plain-language editing, wire NlEditPanel with the bundled demoProposer first. To use   a real model, implement a Proposer that emits one EditOp (validate with editOpSchema) and   apply it with proposeEdits. Keep the Apply/Discard review step: nothing lands without it.

Why this exists

React Flow gives you a canvas. gives you generic workflow chrome. But an approval workflow is not a generic graph: it has approvers who can be unassigned, gates that need 2 of 3 signatures, thresholds that route a $60k request differently from a $600 one, and rules a reviewer expects the screen to enforce, like nobody approving twice on the same path.

Every procurement, AP, expense, or access-request product rebuilds this exact screen. This registry is that screen, extracted from a real one: , where an agent derives the approval workflow from a client's HRIS and the user maintains it in plain language.

What you get

ItemWhat it is
workflow-canvasPolicy JSON in, laid-out graph out. Auto-layout on real node sizes via , diff and status overlays, click-to-select, pan-to-focus.
approval-nodeThe gate card: approvers, unassigned seats, quorum badge, condition pill, SLA, diff and issue rings.
terminal-nodeApproved and rejected outcome pills.
validation-panelThe policy lint, rendered. Click an issue to focus the step on the canvas.
nl-edit-panelPlain-language edits behind a human gate: propose, review the diff, apply or discard.
approvals-coreThe headless core alone: Zod policy schema, validation, step diff, deterministic edit ops. No React required.

workflow-canvas pulls the nodes and the core with it. Add the panels if you want the full screen.

The policy model

A policy is a DAG of steps. Execution enters at roots, follows next edges, and ends at terminal steps. Every step carries a when guard; a step whose condition is false for a given request is skipped. Conditions live on steps, not edges, so the graph stays legible and the diff stays small.

ts
import type { ApprovalPolicy } from "@/lib/approvals-ui/policy";
const policy: ApprovalPolicy = {  name: "Procurement approvals",  roots: ["manager-review"],  steps: [    {      id: "manager-review",      kind: "approval",      label: "Manager review",      when: { kind: "always" },      approvers: [{ name: "Alex Rivera", title: "Engineering Manager" }],      mode: "all",      next: ["finance-review"],    },    {      id: "finance-review",      kind: "approval",      label: "Finance review",      when: { kind: "leaf", field: "amount", op: ">", value: 5_000 },      approvers: [        { name: "Priya Patel", title: "Controller" },        { name: "Sam Okafor", title: "FP&A Lead" },        { name: "Maria Chen", title: "Finance Ops" },      ],      mode: "quorum",      quorum: 2,      next: ["approved"],    },    {      id: "approved",      kind: "terminal",      label: "Approved: post to ERP",      when: { kind: "always" },      outcome: "approved",      next: [],    },  ],};

Render it:

tsx
import { WorkflowCanvas } from "@/components/approvals-ui/workflow-canvas";
<div className="h-[600px]">  <WorkflowCanvas policy={policy} issues={validatePolicy(policy)} /></div>;

The policy lint

validatePolicy runs deterministic rules in two severities. Errors mean the graph is broken and should block activation. Warnings mean it works but breaks an approval best practice, so a human should look.

Errors: duplicate-step-id · dangling-edge · no-roots · unknown-root · cycle · unreachable-step · no-terminal · no-approved-terminal · approved-terminal-unreachable · quorum-invalid

Warnings: unresolved-approver · duplicate-gate · quorum-ignored · no-approval-before-terminal · single-approver-high-value (a path above the materiality threshold with fewer than two gates) · segregation-of-duties (the same person approving twice on one path)

ts
import { validatePolicy, isActivatable } from "@/lib/approvals-ui/validate";
const issues = validatePolicy(policy, { materiality: 25_000, amountField: "amount" });if (isActivatable(issues)) activate(policy);

Editing: ops, not regeneration

A proposer never rewrites the policy. It emits one small EditOp (set-threshold, add-approver, insert-approval-after, remove-step, ...) and applyEditOp applies it deterministically, copying everything unrelated verbatim. The diff you review is exactly what the op touched. Two ops, none and clarify, let a proposer decline or ask instead of guessing.

The playground ships with a deterministic demo parser, so the edit panel works with no model and no API key. In production, swap it for an LLM:

ts
import { generateObject } from "ai";import { editOpSchema, proposeEdits, type Proposer } from "@/lib/approvals-ui/edit-ops";
const llmProposer: Proposer = async (instruction, policy) => {  const { object: op } = await generateObject({    model: "anthropic/claude-sonnet-5",    schema: editOpSchema,    prompt: `Policy: ${JSON.stringify(policy)}\nInstruction: ${instruction}\nEmit one EditOp.`,  });  return proposeEdits(policy, [op]);};

The NlEditPanel UI does not change. The human gate does not change either: the proposal is rendered as a diff on the canvas, and nothing lands until Apply is clicked. If you are building agents that touch approval chains, that review step is the point.

Design decisions

  • Conditions are guards on steps, not edges. Fewer objects to manage, smaller diffs, and the graph reads top to bottom like the policy document it replaces.
  • The lint is code, not a model. Segregation of duties and single-approver-on-high-value are checked deterministically, the same way every run.
  • Edits are reviewable by construction. Ops are small and typed, so the diff is always the full story of a change.
  • You own the code. This is a registry, not a package. Fork the semantics where your domain disagrees.

Development

bash
pnpm installpnpm dev          # playground on localhost:3000pnpm test         # vitest: validation, diff, ops, demo parserpnpm registry:build   # rebuild public/r/*.json from registry.json

Credits

Built by , freelance AI full-stack engineer (ex-Pivot, procurement fintech). I build approval workflows, AP automation, and production agent systems for fintech teams, on contract.

Extracted from . Layout by . Built on and .
